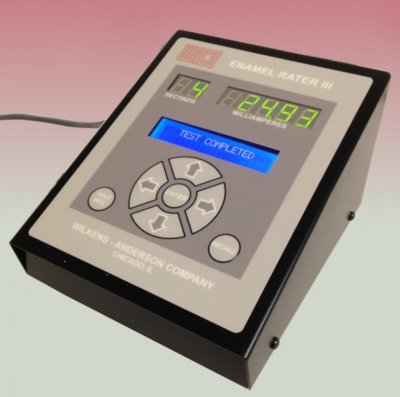

美国沃克 导电率仪 III (Enamel Rater III)
美国沃克 导电率仪 III (Enamel Rater III)
添加时间：2020-03-31 09-53-27 作者：chenhui
制罐行业，制药软管，啤酒饮料行业，喷雾罐，奶粉罐，固体酒精罐等行业必须产品，用于测试罐内涂层是否有破损。
量程：0-500mA
分辨率：0.01mA,
Specifications
| Display: | 0.4" LED, two-digit timer, four-digit milliamp readings | Remote sensing power supply: | Improves accuracy by measuring and regulating voltage at the can under test |
| Power Supply: | Constant voltage, factory set at 6.3V, adjustable 4V to 9V | Display hold: | Pauses display, returns to real time reading when pressed again |
| Range: | 0 to 500 ma | Voltage rev.: | Reverses polarity of electrode to reveal location of exposed metal |
| Fill height sensor: | Electrolyte must be filled to proper level to start test | Rear Panel: | Power cord socket, RS232 serial output, Can Holder/End Panel Holder Socket |
| Can Contact Sensor: | Good electrical contact to can must be established to start test | Dimensions: | Console-6 1/4"w x 4 1/2"h
x 7 1/2"d Can Holder-8"w x 12" h x 12"d |
| Mode Selection: | 4-second - automatically reads and displays 4 second reading | Shipping Dimensions: | 20" x 14" x 12" |
| Continuous - displays changing readins with elapsed times, stores and recalls 4-second and programmable changes | Net Weight: | 7 lb | |
| Programmable - automatically reads and displays the reading at any elapsed time selected by the operator | Shipping Weight: | 12 lb |
