Fungilab Quality + low cost= Viscolead Serie

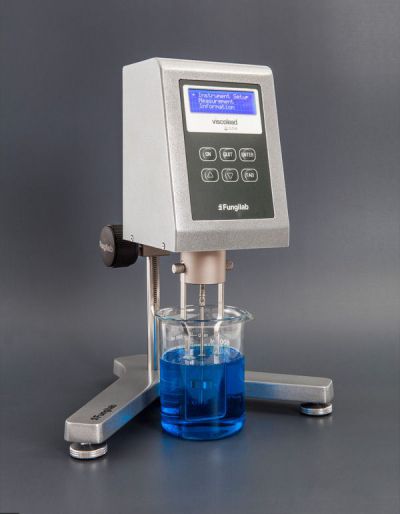

Viscolead One

Measuring of advanced viscosity. Easy to use. 2 years of garantee

Spindles

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350

• BS: 6075, 5350

• ISO:2555,1652

• ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard delivery

• The equipement is supplied complete with standard spindles

• 4 spindles for L model

• 6 spindles for R and H models

• Viscometer stand

• Spindle protector

• Carring case

Technical specifications

Precision: +/- 1% full scale of range

Resolution: For a minus viscosity of 10.000 cP : 0.1 cP For a major viscosity of 10.000 cP : 1 cP With the low viscosity adapter (LCP-LCP/B) : 0.01cP

Repeatability: 0.2%

Supplied at 110-240VAC, 50/60 Hz.

Accessories

APMSmall Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

APM/BSmall Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

LCPLow Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

LCP/BLow Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

HELDALHelix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)

THERMOSPHERETemperature control unit up to 300 ºC

PPRFast spindle switch (push plug and release)

Ranges

• (L) Low viscosity model

• (M) Medium viscosity model

• (H) High viscosity model

Low viscosity: The minimum viscosity when using a "L" range with standard spindles is 10 cP* For measurements < 10cP, its recommended to use in conunction with the low viscosity adapter (LCP or LCP/B)

==================================================================

功能特点

>数据显示：转速：r.p.m      转子：SP    粘度：cP(mPa.S）     满量程的百分比：％

>粘度测量：相对粘度和绝对粘度

>单位换算：SI单位制转换为CGS单位

>自检功能：粘度计自检功能，声光报警提醒

>量程功能：选择好转子和转速组合之后，将自动计算该组合下的最大量程（AUTO-RANGE 功能可以预测当前转速和转子组合下的粘度最大量程）

>用户自定义的粘度校准

> 10种语言可选择

技术规格

• 重复性：0.2%

• 精度：满量程的±1%

• 所有转子均有AISI 316不锈钢制成

• 电源：100-240VAC, 50 /60HZ

• 粘度分辨率：

         使用LCP（低粘度适配器）：0.01cP

         当粘度低于10000CP时：0.1 cP

         当粘度高于10000CP时：1cP

标准配置

主机、3级调平旋钮、标准粘度转子套件（L型4个，R型和H型6个）、转子保护腿、转子支架、电源线、校准证书、操作手册

可选附件

小样品量样品适配器APM、低粘度样品适配器LCP、高粘度样品适配器Heldal unit、标准硅油、水浴、通用适配器、PPR快拆系统
